MODEL: PSH

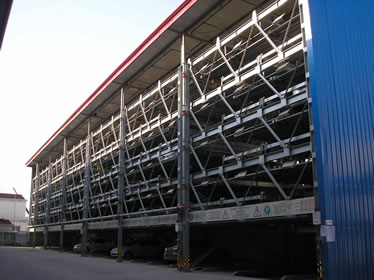

What’s standard puzzle system?

Driver can park and retrieve cars by the pallet lifting up and down and horizontal transferring. Each lot has a pallet. The top tier lots can only be lifted up and down. The middle tier lots can be both transferred horizontally and lifted up and down. But the ground tier can only be moved horizontally. There’s one empty pallet on every tier except the top tier. These pallets can be switched from side to side so that it can make space for the middle tier lots and top tier lots to descend to the ground floor. Then the driver can drive in or out of the pallet. The cars parked on the ground floor can be driven in or out directly.

STANDARD PUZZLE SPECIFICATION

car size	length	≤5200mm
	width	≤2150mm
	height	≤2000mm
capacity	≤2600kg
ground tier	motor	0.2 or 0.4kw
	speed	6m/min
2/3/4/5th tier	Side motor	0.2 or 0.4kw
	side speed	6m/min
	up&down motor	3.7 or 5.5kw
	up&down speed	3m/min
top tier	motor	3.7 or 5.5kw
	speed	3m/min
mechanism	chain or steel cable
noise	≤63db
control	PLC
operation	Card or button

* The specification is adjustable according to customer’s requirement
