MODEL: PCS

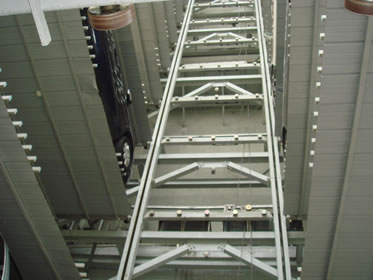

The car is lifted to the designated level by lifting system and the horizontal shifting mechanism will transport car or pallet to the pallet.

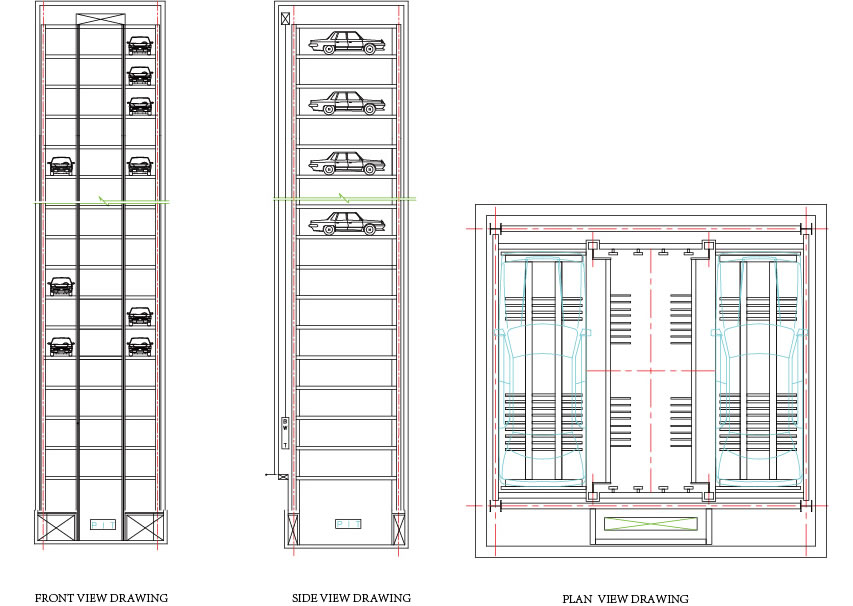

The equipment generally has two parking spaces for each level, it can be up to 25 levels, and can store 50 vehicles( 50 meters height) or store 40 vehicles (36 meters height). It has the lowest area requirement and highest utilization ratio of space with low noise and vibration. The equipment is suitable for land shortage project, new independent solid garage and old city transformation, for example: high-rise office buildings, residential buildings, hospitals, commercial buildings and etc.

TOWER PARKING SYSTEM SPECIFICATION

car size	length	≤5250mm
	width	≤2150mm including side mirror
	height	≤1550mm
	weight	≤1850kg
lifting drive unit	lifting fork drive
	motor	18.5kw
	mechanism	chain
	control	vibrator control
		electrical braking
	speed	90m/min
transporting drvie unit	cylinder drum drive
	motor	0.2kw (pallet)
		0.4kw (hoist way)
	reducer	planet gear
	mechanism	chain
	control	electrical braking
	speed	26m/min
operation mode	keyboard & IC card
