MODEL:PCX

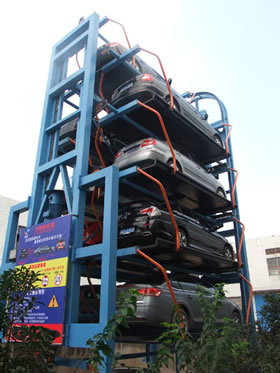

What’s vertical circulation parking system?

There are many pallets installed on the chain, the driving system of the system. When the motor is started, the pallets will make vertical movements with the chain moving. In this way different cars on the pallets will be retrieved or parked.

VERTICAL ROTARY PARKING SPECIFICATION

car size	length	≤5000mm
	width	≤1900mm
	height	≤1500mm
	weight	≤1800kg
power	5.5kw or 7.5kw
speed	4m/min
noise	≤63db
