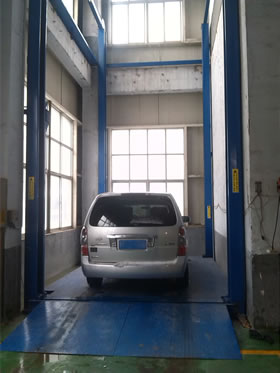

SIMPLE CAR ELEVATOR

MODEL: QSJY

Feature:

• High pressure hydraulic transmission,
• high strength steel chain driving, double chain improving safety and reliability,
• adjustable screw, low noise, large cpacity pump station,
• customize design acceptable, applicable to car shop and show room.

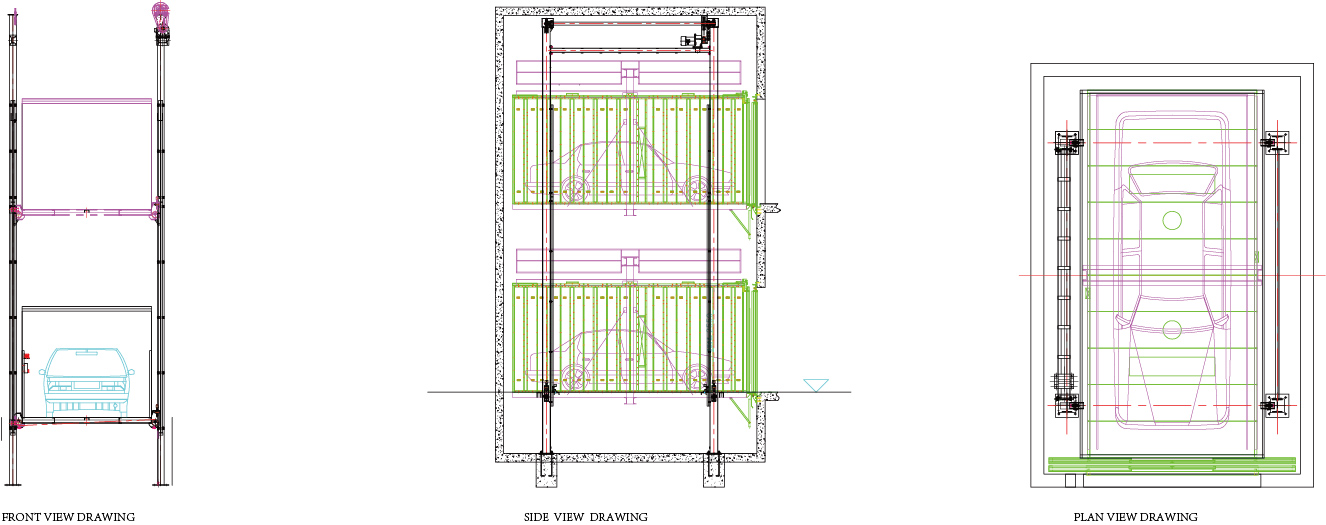

What’s vertical circulation parking system?

There are many pallets installed on the chain, the driving system of the system. When the motor is started, the pallets will make vertical movements with the chain moving. In this way different cars on the pallets will be retrieved or parked.

VERTICAL ROTARY PARKING SPECIFICATION

car size	length	≤5000mm
	width	≤1900mm
	height	≤1500mm
	weight	≤1800kg
power	5.5kw or 7.5kw
speed	4m/min
noise	≤63db



PROFESSIONAL CAR ELEVATOR

The aut omobile elevator applies t he h ighly  well-developed  variable voltage,  varable  frequency control technology,  precise speed governor control. It avoids noids and car-shake due to enlarged burden of traction system  because of uneven encountered force to the car.  It optimizes the characteristics of this series to the greatest extent.

Safety guide device

Safety  guide device sets in  the car ground  to ensure fine  security of the cars and the eleators.

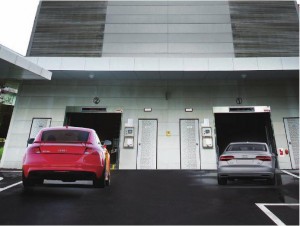

Double penetration to open the door

The elevator capsules double-sided through the door which is more convenient for the safety sector and for the cars to enter into/exit from the elevator cars.

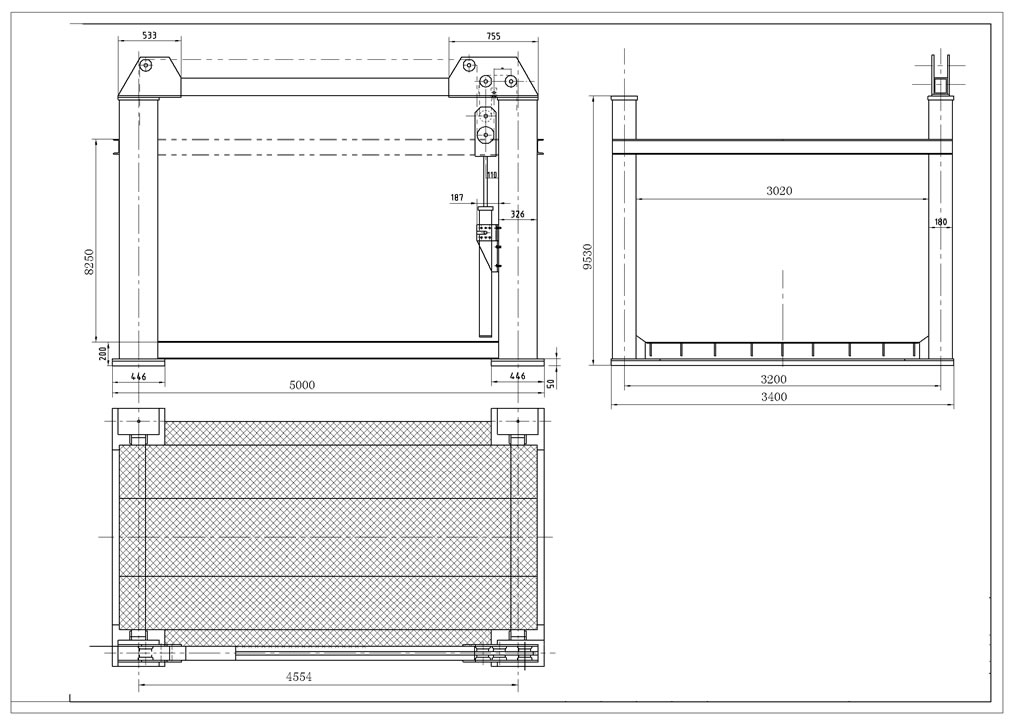

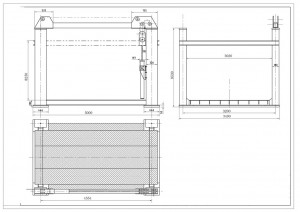

PROFESSIONAL CAR ELEVATOR SPECIFICATION

capacity	door open size	cage specification	shaft size
3000KGS	2400x2200mm	2500x5940x2200mm	3900x6680mm
5000KGS	2800x2300mm	3400x7000x2300mm	4700x7760mm
