MODEL: PPY

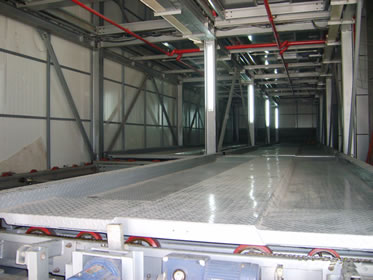

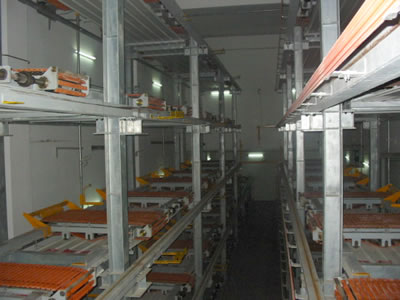

What’s plane moving parking system?

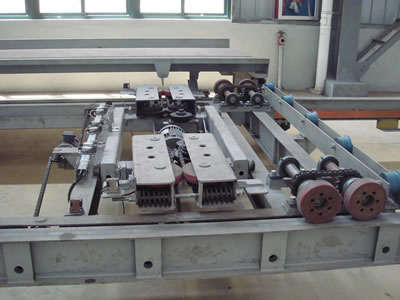

The pallet is retrieved or parked by the shuttle on each floor or elevator between different floors with the help of accessing outfit and robot or it’s realized by the combination of shuttle and elevator, translift.

The equipment can not only reduce lane area, increase parking density and utilization ratio but also benefit safety, liability, automatic ratio and parking efficiency. It is mainly divided into single-layer shuttling, single layer (or multi-layer) shuttling, suitable for parking system on the ground, underground and combining parking system. It is mainly applied to large garage or parking lot.



car size	length	≤5200mm
	width	≤2150mm including side mirror
	height	≤2050mm
	weight	≤2500kg
operation mode	keyboard & IC card
lift specification	60m/min
	18.5kw
transport movement	45m/min
	4×0.75kw
turntable	3 rpm
parking mode	forward in & forward out

• The specification is adjustable according to customer’s requirement.
